Product Name:cnc router

Product Details:
Model:
DB2500D-II
Select Payment and Shipping Terms:
Min. Order Quantity:
0
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
0 per 0
Delivery Time:
Packaging:

Detailed Product Description:

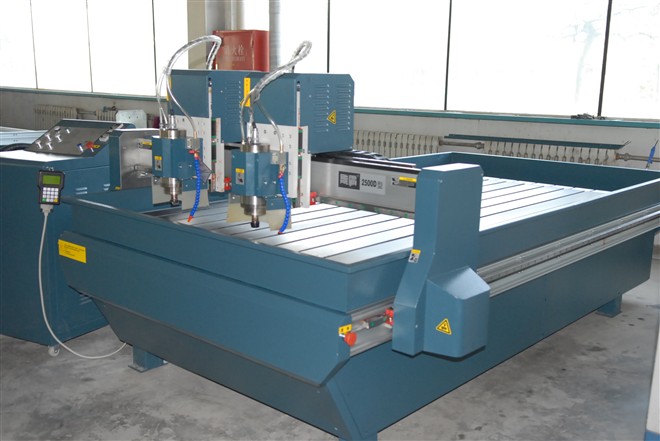

DB2500D with two heads (spindle) are newly developed by Fortuna specially hard decorative material engraving. To combine with diamond cutter and sintered cutter specifically developed for the engraving machine, as the best choice of the individual indoor and outdoor decorations, they can process on hard material etc. as natural marble, artificial marble, ceramic tile and other decorative materials etc.

Using new handle for system control and current 2D and 3D program software, DB2500D (two heads) can make your design and realization easily in a wide-range of application. It also with more effective and reduce human cost.



Features:

l       The diamond cutter and sintered for hard materials make it easier to process vertical letter and pattern on marble and ceramic tile.

l       High rigid frame structure can achieve high speed and high accuracy

l       The precise large power spindle can provide high speed engraving and fine processing

l       Automatic cutter sensor improves engraving efficiency

l       Power-off protective memory function assures restarting work in the same position after power-off

l       Advanced DSP offline control system can provide better stability

Application:

l       Whole cabinet door and table

l       Marble and ceramic tile craftworks

l       Stele processing

l       Individual indoor and outdoor decorations making

l       Other stone industry

Technical parameter DB2500D-II with two heads:

Item

DB2500D-II (two heads)

Working table size

1570*2950mm

Max engraving size

1300*2500mm

Vertical movement

150mm

Pulse

63.67*63.67*63.67

Maxing moving speed

25000mm

Repetition accuracy

0.02mm

Data transmission manner

USB

Control system

0501-3

Memory

128M

Spindle power

3.0kw*2

Max spindle speed

24000rpm

Cutter diameter

3.175-12mm

Power

9.5kw

Voltage(V)

380

Rotary device pulse

11.11

Machine size

3080*1990*1440mm

Packing size

3300*2180*1680mm

Cooling system

Circulation water

Net weight

950kg

Gross weight

1000kg
